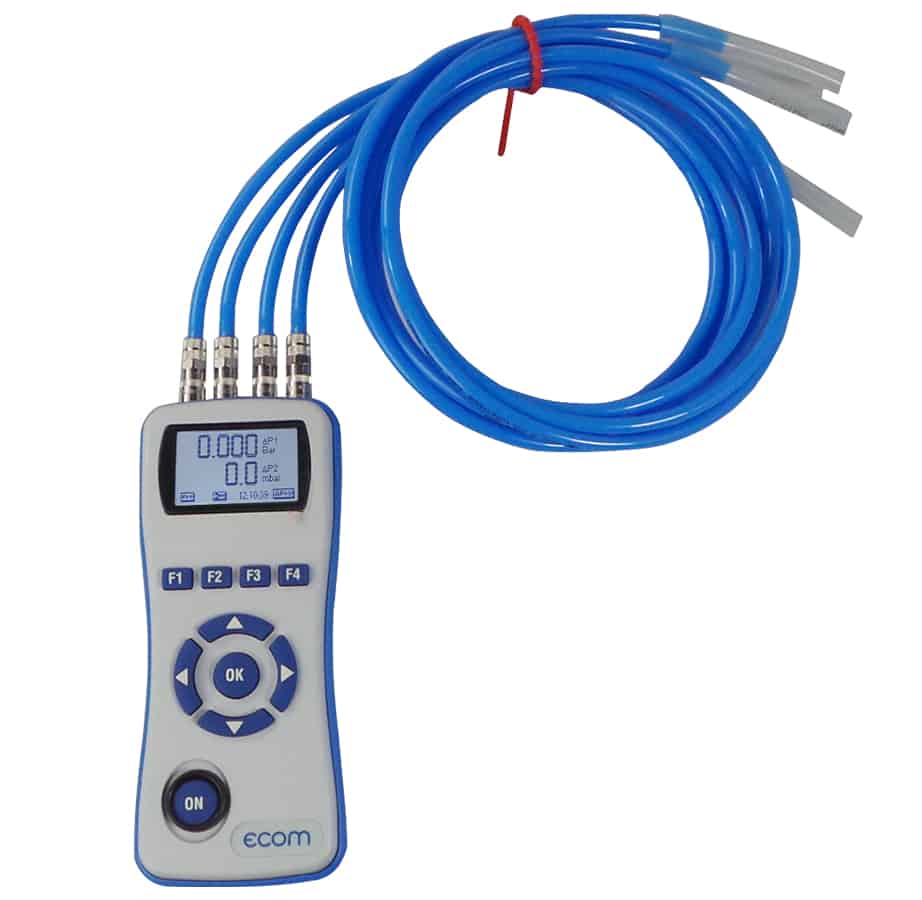

ecom-DP Engine

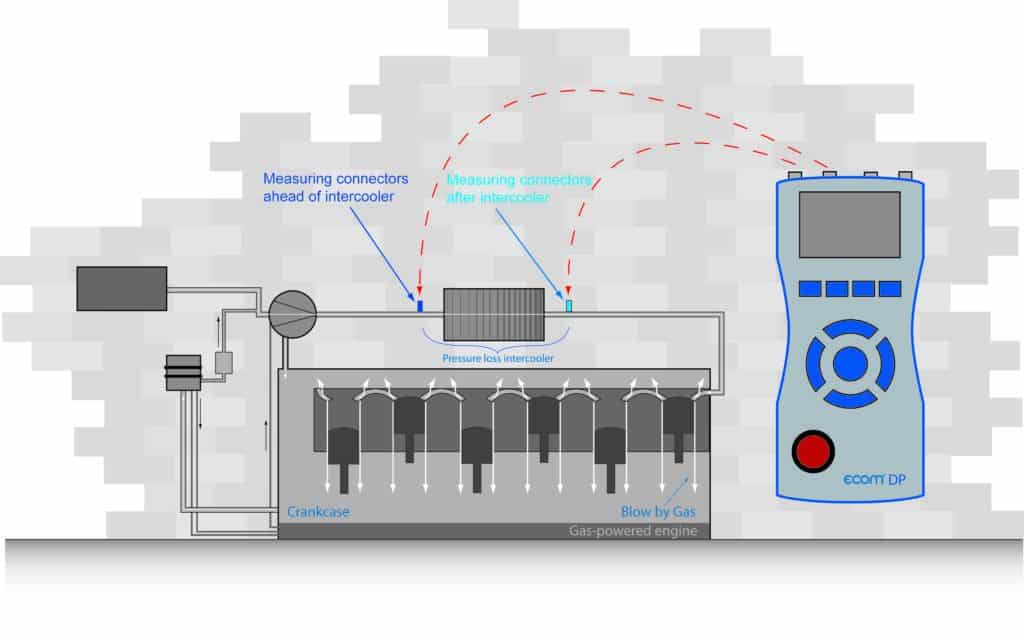

  • For pressure measurements at gas engines

  • Gas pressure control

  • Differential pressure measurement at air intercoolers

  • Measurement of flue gas overpressure

  • Differential pressure measurement at blow-by-filters

  • Measurement of crankcase pressure

  • Suitable for pressure measurements at gas heatings / burners

  • Thermal printer as accessory

  • Min./Max. function (storage of lowest or highest value)

  • Freeze function (manual temporary storage of a specific
    measurement value)

  • Damping adjustable

  • Changeable parameter for specific tests

  • Data storage and data logging

Features/ Delivery Scope

  • Measurement instrument with backlit graphic display
  • Power supply: 3 one-way batteries AA 1.5 V (Mignon)
  • Dimensions (L x W x H): approx. 170 x 75 x 35 mm
  • Weight: approx. 300 g (with batteries)
  • Free downloadable PC software „ecom-DP Logger“

Suitable for the Following Measurements:

  • Measurements and adjustments of engines
  • Gas pressure control (±80 hPa to 8 bar)
  • Differential pressure measurements at air intercooler
    (±20 to 700 hPa)
  • Measurement of flue gas overpressure (±5 to 120 hPa)
  • Differential pressure measurements at blow-by-filters
    (5 to 50 hPa)
  • Measurement of crankcase pressure (-5 to 100 HPa)
  • Differential pressure measurements at gas heatings/gas burners (connection pressure, nozzle pressure, plant pressure and stand-by pressure) also possible

pruefsiegel_sw                                         UKCA

Testing according to                   UKCA approved
DIN EN 50379-2 and
1st. BImSchV.



Data Sheet

Brochure

Options (i.a.)

  • Pressure tests according to TRGI (upon request)
  • Tightness check of gas valve at gas heatings/gas burners (upon request)

Accessories (i.a.)

  • Thermal printer (IR)
  • Tube set - for operating pressures up to 1 bar
    (2 tubes - each 4 m length incl. quick- & screw coupling)
  • Tube set - for operating pressures up to 10 bar
    (2 tubes - each 4 m length incl. quick- & screw couplings)
  • Plastic transport case (different options – depending on scope of delivery)

To enlarge, click on the picture.

Recommended for

Technical Data:

Measurement Range Resolution [hPa]Accuracy
0-10 bar0,001 bar0,5% of meas. range end value
0-1 bar0,1 hPa0,3% of meas. range end value
